Cross-over valve combination with 3- or 4-way valves
Type UK
- cost-effective combination of different valve types and sizes
DN 25 – 600 / PN 10 – 160
NPS 1 – 24 / Class 150 – 900
Range of application:
-60 < T < 230/320°C
vacuum-capable
Cross-over valve combination with 3- or 4-way valves
Type UK
- cost-effective combination of different valve types and sizes
DN 25 – 600 / PN 10 – 160
NPS 1 – 24 / Class 150 – 900
Range of application:
-60 < T < 230/320°C
vacuum-capable
Sealing systems
Design characteristics
- 90°-Valve / Quarter-Turn synchronous combination
- 2-way or multiway valves for filter cycles, pump cycles, reactor cycles or cooling cycles
- 90° and 120° valves
- cost-effective and reliable
- Multiway combination for parallel operation
- available with hand lever, gearbox and actuator
Options
- special materials
- continuous 90 ° / 120 ° shift by additional ratchet coupling, type SSK
Sealing systems
Design characteristics
- 90°-Valve / Quarter-Turn synchronous combination
- 2-way or multiway valves for filter cycles, pump cycles, reactor cycles or cooling cycles
- 90° and 120° valves
- cost-effective and reliable
- Multiway combination for parallel operation
- available with hand lever, gearbox and actuator
Options
- special materials
- continuous 90 ° / 120 ° shift by additional ratchet coupling, type SSK
Variants
Type UK-V
3-way combination with bolted valves
Type UK-L
4-way combination with loose valves
All types of AZ-valves combinable with different valve types and sizes
To avoid misalignment of the plug-axis, in case of wrong assembling, we recommend the screwed design TYPE “UK-V” of our crossover-valvecombinations
Individual selection of the piping centreline dimension (RMA) minimum size = RMAmin)
Applications for
- exchange
- maintenance
- regeneration
of individual components without process interruption
Durable
- Sealing surfaces remain clean and do not come in contact with medium
- plug protection
- adjustable
- constant torque ( Δp independent !)
High economic efficiency
- maintenance without shutdown of production
- Operation with just one actuator
- simple & safe control
- uninterrupted parallel operation
Operating principle with 3-way and 4-way plugs
Service switchover
Examples of pump service
Cross-over valve combination with two 3-way valves for simple exchange or repairing of a pump without process interruption
Description
- System operation with pump
- break-down of pump
- switching to pump without interruption of the
continuous flow - replacement of pump
Same procedure with other plant components, e.g. filters etc.
Parallel operation switchover

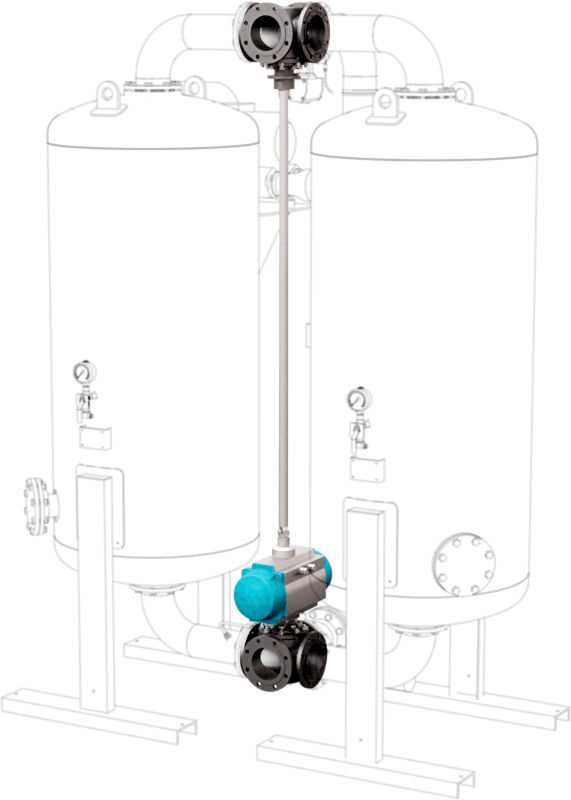

Examples of air drying
Cross-over valve combination with two 4-way valves (with LL4 plug type) for purging or regeneration of components without process interruption
Description
- Drying plant for providing dry process air is saturated with water
- switching to plant without interruption of the continuous flow
- Regeneration of the drying plant and draining of condensates
