Plug Types: Two-way and multi-port for standard reduced and full bore design
Design and Plug Type
STANDARD / two-way
EXTRA (full bore) /two-way
Multi-Port / e.g. T4

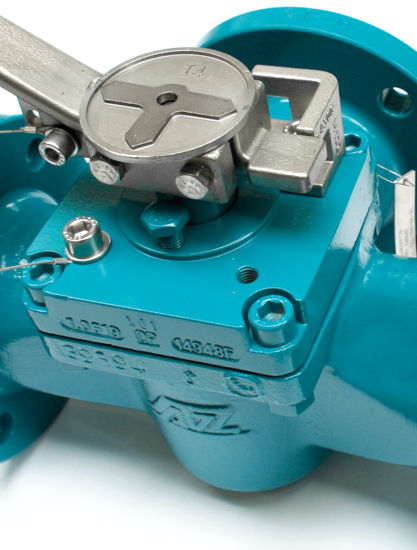

- position indicator for all multi-way valves welded on lever or stem extension
- Lined plug valves: multi-way plugs only with PFA / FEP plug lining or made of special materials. Two-way plugs with PTFE lining up to DN 100 / NPS 4 available
Recommendation for three-way valves type F-3-S with vertical outlet (longer life-time compared to type F-3-W with horizontal outlet)
Options
Plugs made of special materials or special designs, e.g. with flushing devices, vent holes in plug bottom or plug upstream / downstream side
Two-Way-Valve
Typ F-2-ISO-STANDARD
Typ F-2-ISO-STANDARD-A
*) For highly expanding media AZ recommends the “i-plug” (relief hole and open plug buttom)
Typ F-2-ISO-STANDARD
Typ F-2-ISO-STANDARD-A
Plug types: 3-way valve for STANDARD and EXTRA design
3-ways vertical
Type F-3-ISO-STANDARD
Type F-3-ISO-STANDARD-A
*) for EXTRA valves with IL-plug, F-3-W-EXTRA with T4-plug is recommended (higher flowrate)
Lined valves: the IL-plug is only available in special materials
Type F-3-ISO-STANDARD
Type F-3-ISO-STANDARD-A
3-ways horizontal
Type F-3-ISO-STANDARD
Type F-3-ISO-STANDARD-A
Type F-3-ISO-STANDARD
Type F-3-ISO-STANDARD-A
Plug types 3-way (120°) valves and 4-way valves for STANDARD and EXTRA design
3-way (120°) type 3-W-120:
- min. cross section guaranteed (switching phase)
- piggable execution on request
- minimum flow guaranteed
3-way (120°) type 3-WP-120
- with positive overlap
- flow interruption / isolation
4-way valves
Type F-4-ISO-STANDARD
Type F-4-ISO-STANDARD
Plug types 4-way (special) and 5-way valves for STANDARD and EXTRA design
Type F-4-ISO-STANDARD
Type F-4-ISO-STANDARD
Type F-4-ISO-STANDARD
Type F-4-ISO-STANDARD
